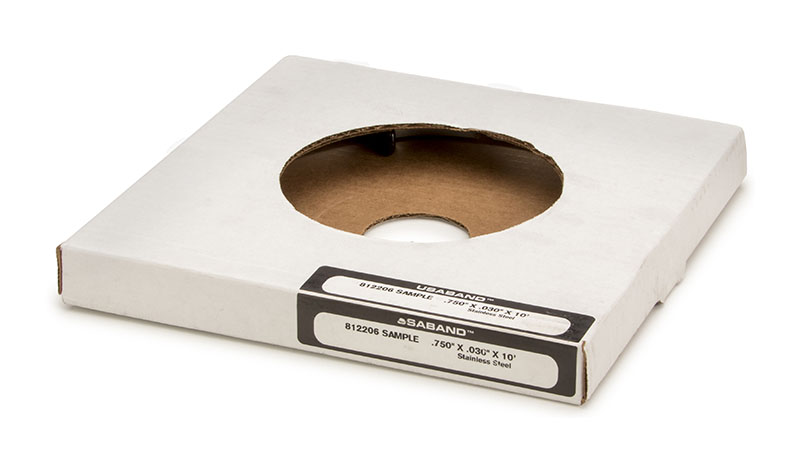

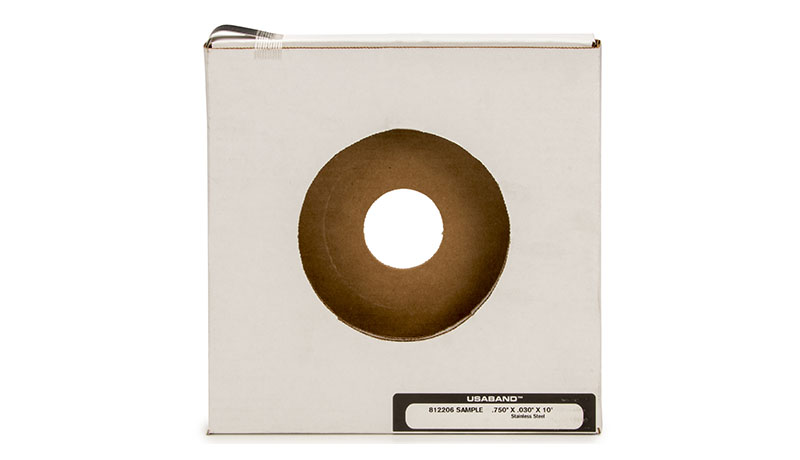

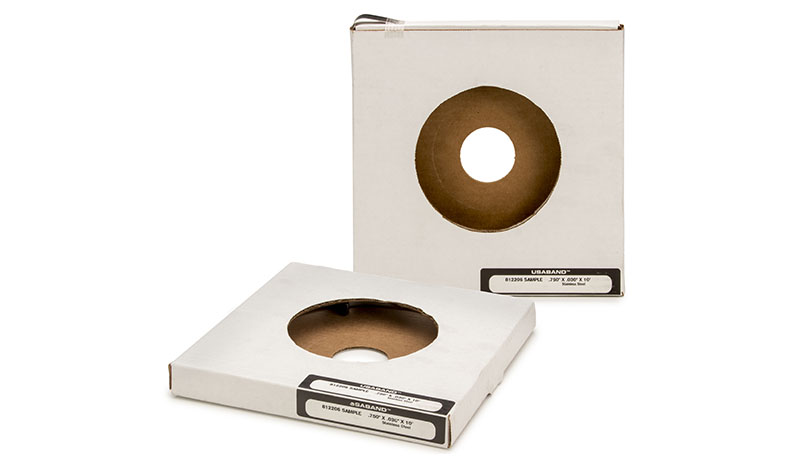

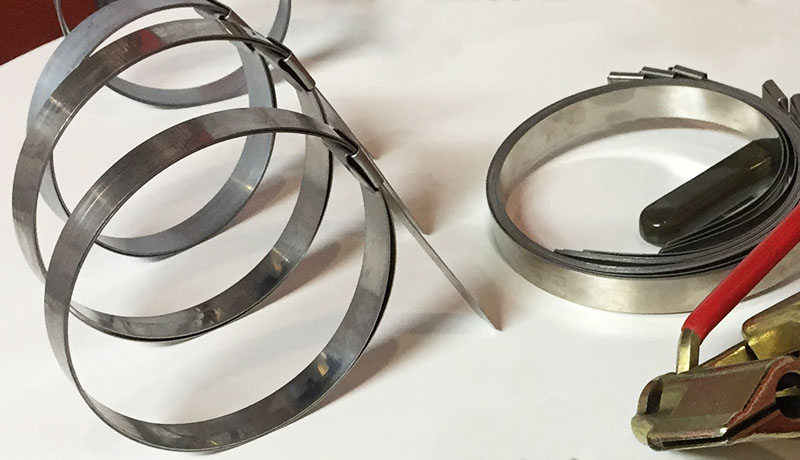

Rolled in Type 201 and Type 316 stainless steel and in galvanized carbon steel, USABAND band coil covers standard-duty banding through heavy-duty 1-1/4" structural strapping. Standard coils ship 100' to a carton; select widths are also available as compact totes for field crews.
| Catalog # | Product | Grade | Spec | Package | Weight | Copy |
|---|---|---|---|---|---|---|
| 812202 | Type 201 Stainless Steel Band, 1/4 in x 0.020 in | 201 SS | 1/4" × 0.02" 6.35 mm × 0.51 mm | 1 roll | 1.7 lb 0.77 kg | |
| 812203 | Type 201 Stainless Steel Band, 3/8 in x 0.025 in | 201 SS | 3/8" × 0.025" 9.52 mm × 0.64 mm | 1 roll | 3.2 lb 1.45 kg | |
| 812171 | Type 201 Stainless Steel Band, 1/2 in x 0.025 in | 201 SS | 1/2" × 0.025" 12.7 mm × 0.64 mm | 1 roll | — — | |
| 812181 | Type 201 Stainless Steel Band, 5/8 in x 0.025 in | 201 SS | 5/8" × 0.025" 15.88 mm × 0.64 mm | 1 roll | — — | |
| 812191 | Type 201 Stainless Steel Band, 3/4 in x 0.025 in | 201 SS | 3/4" × 0.025" 19.05 mm × 0.64 mm | 1 roll | — — | |
| 812204 | Type 201 Stainless Steel Band, 1/2 in x 0.030 in | 201 SS | 1/2" × 0.03" 12.7 mm × 0.76 mm | 1 roll | 5.1 lb 2.31 kg | |
| 812205 | Type 201 Stainless Steel Band, 5/8 in x 0.030 in | 201 SS | 5/8" × 0.03" 15.88 mm × 0.76 mm | 1 roll | 6.4 lb 2.9 kg | |
| 812206 | Type 201 Stainless Steel Band, 3/4 in x 0.030 in | 201 SS | 3/4" × 0.03" 19.05 mm × 0.76 mm | 1 roll | 7.7 lb 3.49 kg | |
| 812430 | Heavy Duty Type 201 Stainless Steel Band | 201 SS | 3/4" × 0.044" 19.05 mm × 1.12 mm | 1 roll | 11.6 lb 5.26 kg | |
| 812431 | Heavy Duty Type 201 Stainless Steel Band | 201 SS | 1" × 0.044" 25.4 mm × 1.12 mm | 1 roll | 13.7 lb 6.21 kg | |
| 812432 | Heavy Duty Type 201 Stainless Steel Band | 201 SS | 1 1/4" × 0.044" 31.75 mm × 1.12 mm | 1 roll | 17.2 lb 7.8 kg | |
| 812303 | Galvanized Carbon Steel Band | Galvanized Steel | 3/8" × 0.025" 9.52 mm × 0.64 mm | 1 roll | 3.3 lb 1.5 kg | |
| 812304 | Galvanized Carbon Steel Band | Galvanized Steel | 1/2" × 0.03" 12.7 mm × 0.76 mm | 1 roll | 5.1 lb 2.31 kg | |
| 812305 | Galvanized Carbon Steel Band | Galvanized Steel | 5/8" × 0.03" 15.88 mm × 0.76 mm | 1 roll | 6.4 lb 2.9 kg | |
| 812306 | Galvanized Carbon Steel Band | Galvanized Steel | 3/4" × 0.03" 19.05 mm × 0.76 mm | 1 roll | 7.7 lb 3.49 kg | |
| 812403 | Type 316 Stainless Steel Band | 316 SS | 3/8" × 0.025" 9.52 mm × 0.64 mm | 1 roll | 3.2 lb 1.45 kg | |
| 812404 | Type 316 Stainless Steel Band | 316 SS | 1/2" × 0.03" 12.7 mm × 0.76 mm | 1 roll | 5.6 lb 2.54 kg | |
| 812405 | Type 316 Stainless Steel Band | 316 SS | 5/8" × 0.03" 15.88 mm × 0.76 mm | 1 roll | 6.5 lb 2.95 kg | |
| 812406 | Type 316 Stainless Steel Band | 316 SS | 3/4" × 0.03" 19.05 mm × 0.76 mm | 1 roll | 7.9 lb 3.58 kg | |
| 812203T | Stainless Steel Band Tote | Stainless | 3/8" × 0.025" 9.52 mm × 0.64 mm | 1 roll | 3.3 lb 1.5 kg | |
| 812204T | Stainless Steel Band Tote | Stainless | 1/2" × 0.03" 12.7 mm × 0.76 mm | 1 roll | 5.1 lb 2.31 kg | |
| 812205T | Stainless Steel Band Tote | Stainless | 5/8" × 0.03" 15.88 mm × 0.76 mm | 1 roll | 6.4 lb 2.9 kg | |
| 812206T | Stainless Steel Band Tote | Stainless | 3/4" × 0.03" 19.05 mm × 0.76 mm | 1 roll | 7.7 lb 3.49 kg | |
| 812430T | Heavy Duty Stainless Steel Band Tote | Stainless | 3/4" × 0.044" 19.05 mm × 1.12 mm | 1 roll | 12.1 lb 5.49 kg |
Material certification available on request. Contact your distributor rep for pricing and MOQ.

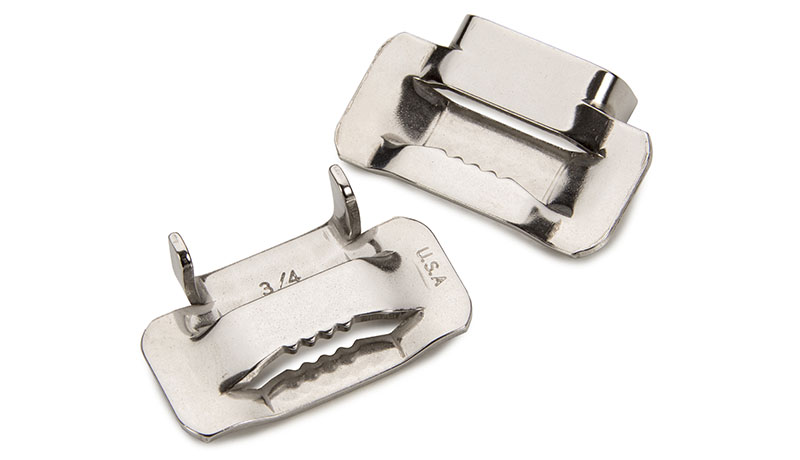

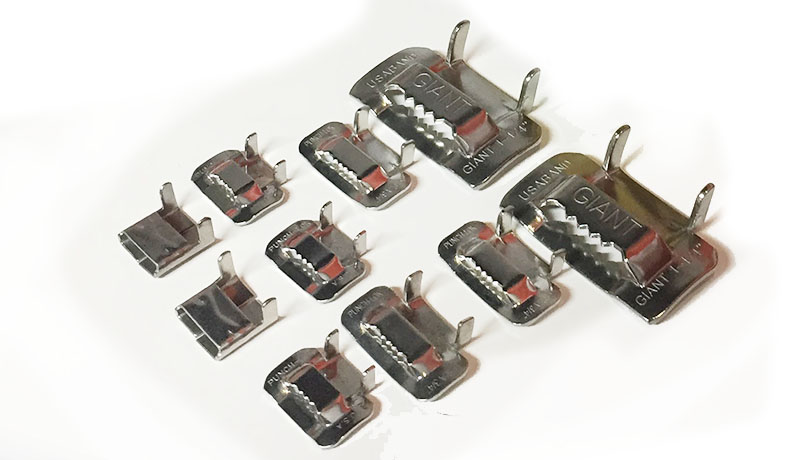

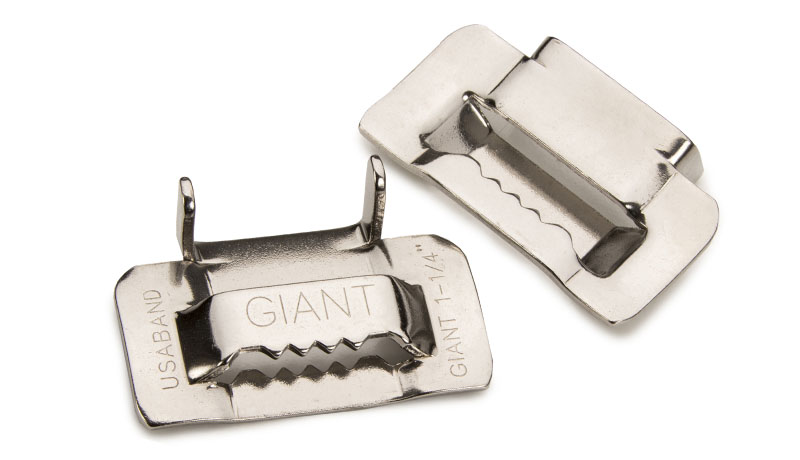

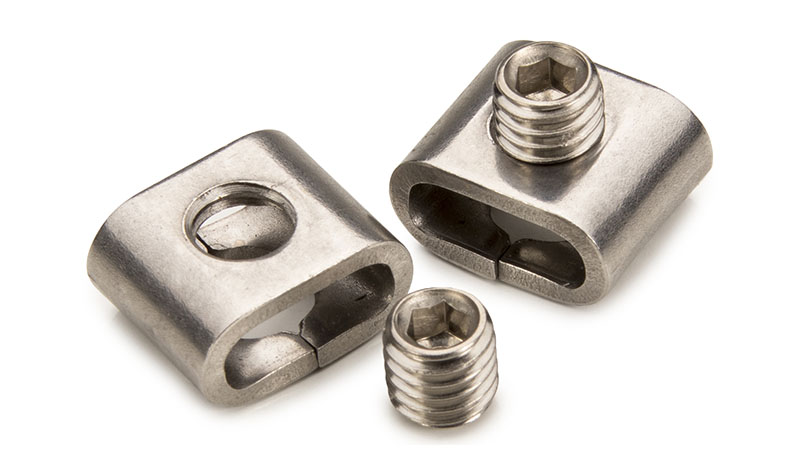

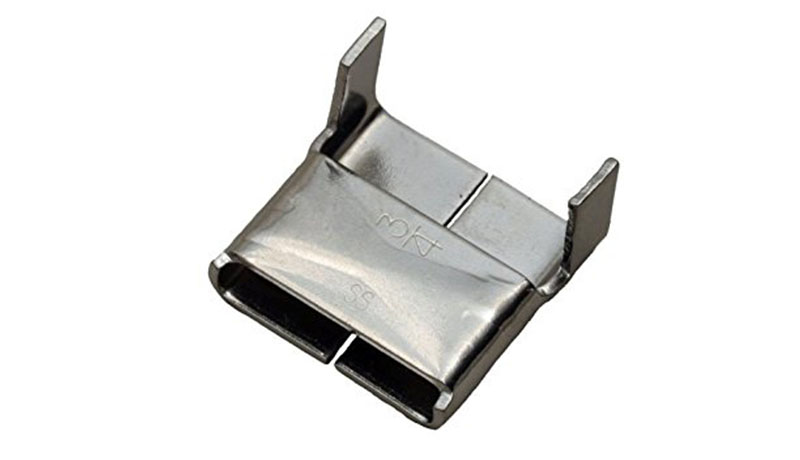

Standard wing buckles in 201 and 316 SS match every band width and grade. Heavy-duty buckles pair with the 1" and 1-1/4" HD band line, and 304 SS screw-lock buckles and clips give field crews a tool-free, re-tensionable connection where repeated adjustment is needed.
| Catalog # | Product | Grade | Spec | Package | Weight | Copy |
|---|---|---|---|---|---|---|
| 812252 | Type 201 Stainless Steel Buckle | 201 SS | 1/4" 6.35 mm | 100 pcs | 0.3 lb 0.14 kg | |
| 812253 | Type 201 Stainless Steel Buckle | 201 SS | 3/8" 9.52 mm | 100 pcs | 0.8 lb 0.36 kg | |
| 812254 | Type 201 Stainless Steel Buckle | 201 SS | 1/2" 12.7 mm | 100 pcs | 2.1 lb 0.95 kg | |
| 812255 | Type 201 Stainless Steel Buckle | 201 SS | 5/8" 15.88 mm | 100 pcs | 2.5 lb 1.13 kg | |
| 812256 | Type 201 Stainless Steel Buckle | 201 SS | 3/4" 19.05 mm | 100 pcs | 3.7 lb 1.68 kg | |
| 812453 | Type 316 Stainless Steel Buckle | 316 SS | 3/8" 9.52 mm | 100 pcs | 0.97 lb 0.44 kg | |
| 812454 | Type 316 Stainless Steel Buckle | 316 SS | 1/2" 12.7 mm | 100 pcs | 2.89 lb 1.31 kg | |
| 812455 | Type 316 Stainless Steel Buckle | 316 SS | 5/8" 15.88 mm | 100 pcs | 3.1 lb 1.41 kg | |
| 812456 | Type 316 Stainless Steel Buckle | 316 SS | 3/4" 19.05 mm | 100 pcs | 4.2 lb 1.91 kg | |
| 812440 | Type 201 Heavy Duty Stainless Steel Buckle | 201 SS | 3/4" 19.05 mm | 25 pcs | 1.9 lb 0.86 kg | |
| 812441 | Type 201 Heavy Duty Stainless Steel Buckle | 201 SS | 1" 25.4 mm | 25 pcs | 2.5 lb 1.13 kg | |
| 812442 | Type 201 Heavy Duty Stainless Steel Buckle | 201 SS | 1 1/4" 31.75 mm | 25 pcs | 3.3 lb 1.5 kg | |
| 812724 | A-Screw Lock Buckle | 304 SS | 1/2" 12.7 mm | 25 pcs | 0.55 lb 0.25 kg | |
| 812725 | A-Screw Lock Buckle | 304 SS | 5/8" 15.88 mm | 25 pcs | 0.75 lb 0.34 kg | |
| 812726 | A-Screw Lock Buckle | 304 SS | 3/4" 19.05 mm | 25 pcs | 0.95 lb 0.43 kg | |
| 812153 | USABAND Stainless Steel Band Clip | 304 SS | 3/8" 9.52 mm | 100 pcs | 0.5 lb 0.23 kg | |
| 812154 | USABAND Stainless Steel Band Clip | 304 SS | 1/2" 12.7 mm | 100 pcs | 1 lb 0.45 kg | |
| 812155 | USABAND Stainless Steel Band Clip | 304 SS | 5/8" 15.88 mm | 100 pcs | 1.1 lb 0.5 kg | |
| 812156 | USABAND Stainless Steel Band Clip | 304 SS | 3/4" 19.05 mm | 100 pcs | 2 lb 0.91 kg |
Material certification available on request. Contact your distributor rep for pricing and MOQ.

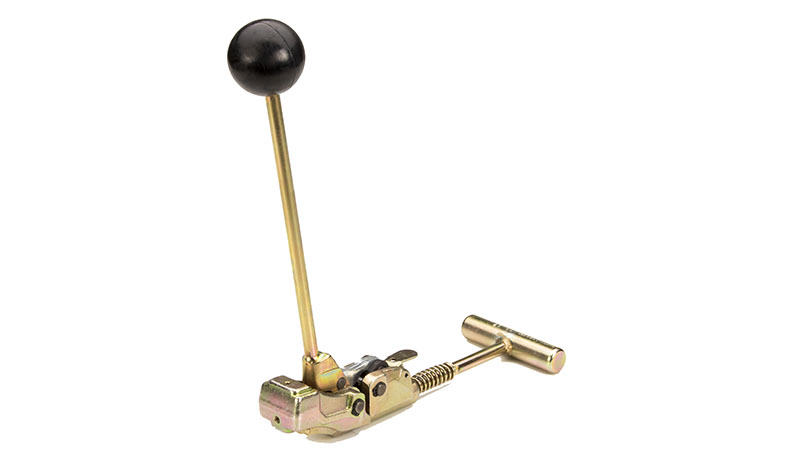

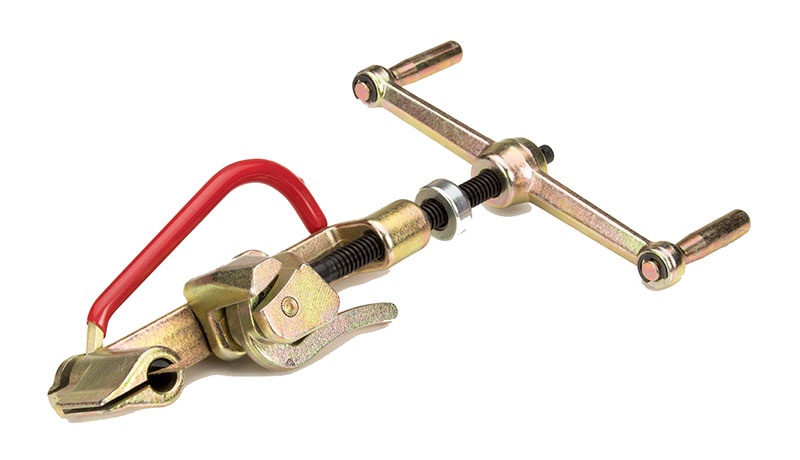

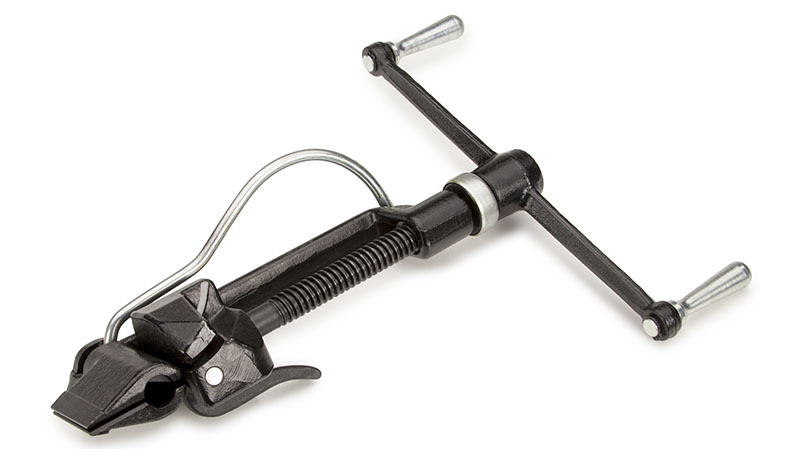

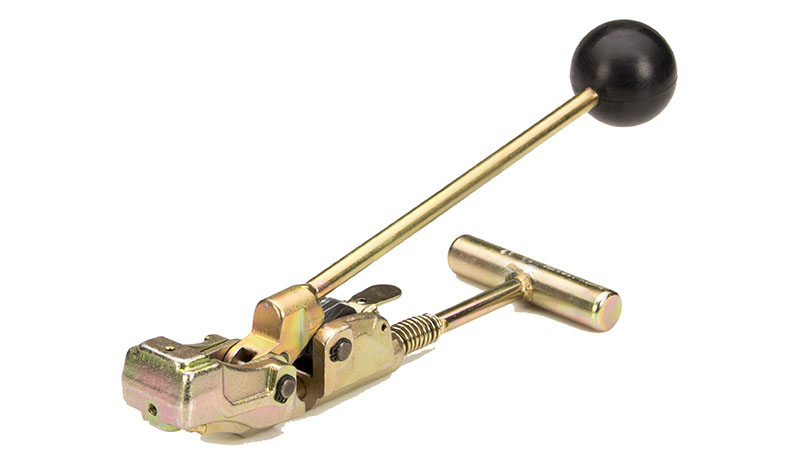

The standard drop-forged tool handles light-duty banding and buckles up to roughly 2,400 lb of tension and includes a built-in cutter. The heavy-duty tool is built specifically for the 1" / 1-1/4" HD band and buckle line, with tension capacity up to 6,600 lb.
| Catalog # | Product | Grade | Spec | Package | Weight | Copy |
|---|---|---|---|---|---|---|
| 812001 | USABAND Standard Banding Tool | Steel | Tension capacity over 2,400 lb Tension capacity over 2,400 lb | 1 piece | 4.4 lb 2 kg | |
| 812110 | USABAND Heavy Duty Tool | Steel | Tension capacity up to 6,600 lb; tool length 16.5 in Tension capacity up to 6,600 lb; tool length 16.5 in | 1 piece | 11.7 lb 5.31 kg |
Material certification available on request. Contact your distributor rep for pricing and MOQ.

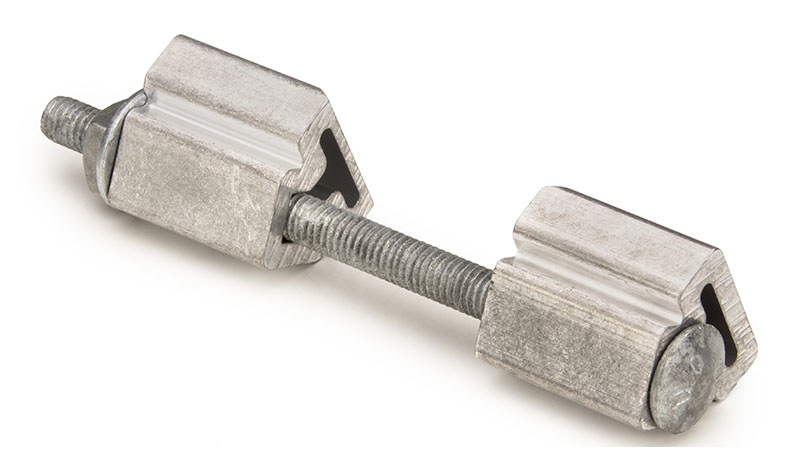

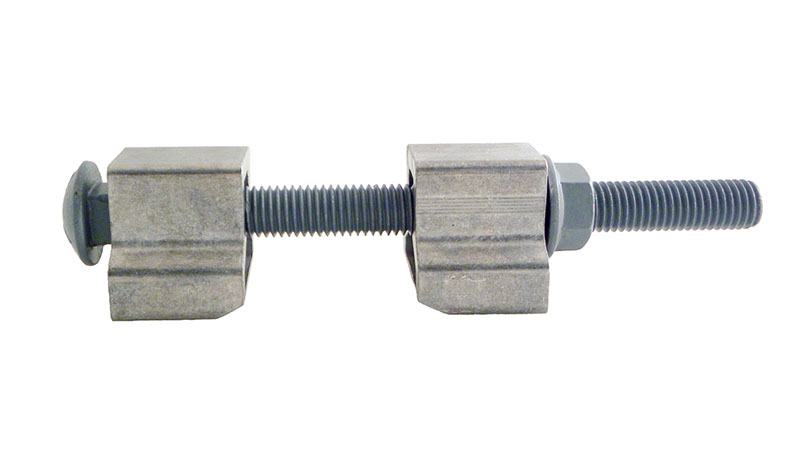

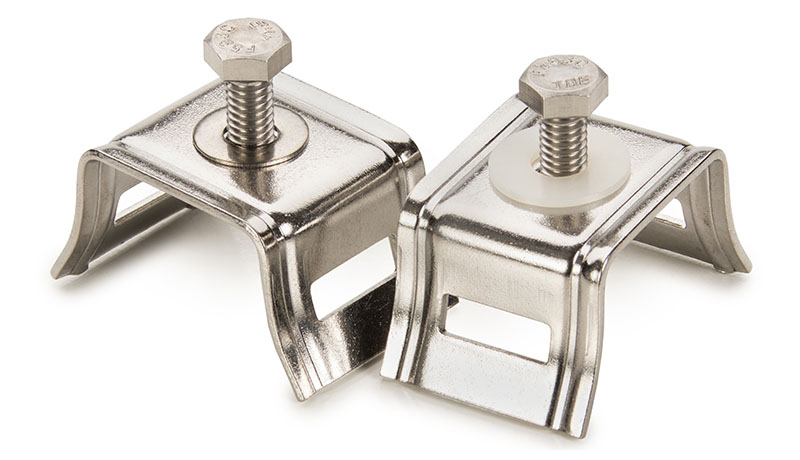

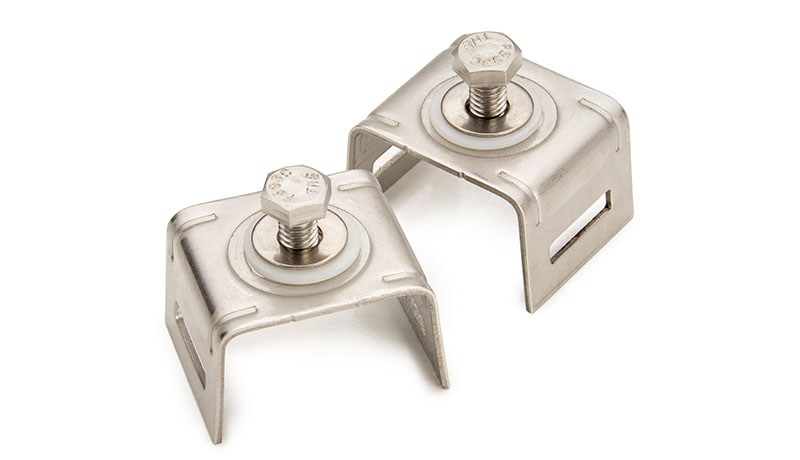

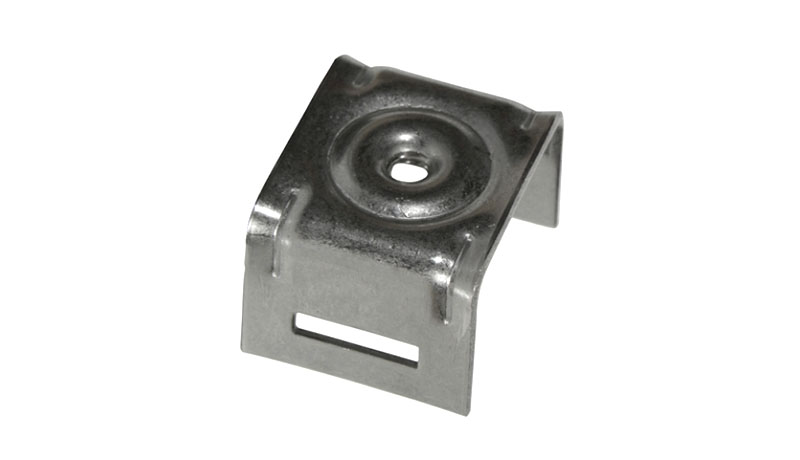

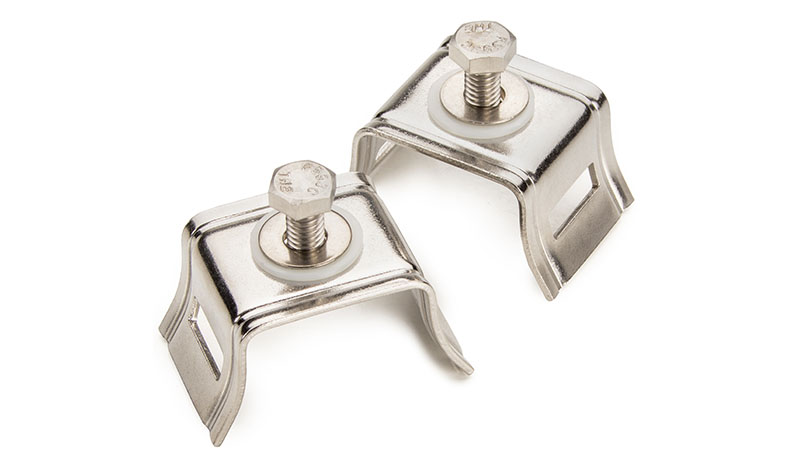

Extruded aluminum bolt clamps anchor band directly to a pole or post, and stainless sign mounting brackets give contractors a bolt-on bracket for flat or flared sign faces — both supplied complete with galvanized or stainless hardware.
| Catalog # | Product | Grade | Spec | Package | Weight | Copy |
|---|---|---|---|---|---|---|
| 812500 | Bolt Clamp | Galvanized Steel | — — | 1 each | — — | |
| 812504 | Heavy Duty Bolt Clamp | Galvanized Steel | — — | 1 each | — — | |
| 812100 | 1-Bolt Straight Sign Mounting Bracket | Stainless | — — | 50 pcs | 3.3 lb 1.5 kg | |
| 812021 | 1-Bolt Flared Sign Mounting Bracket | Stainless | — — | 50 pcs | 7.3 lb 3.31 kg |
Material certification available on request. Contact your distributor rep for pricing and MOQ.

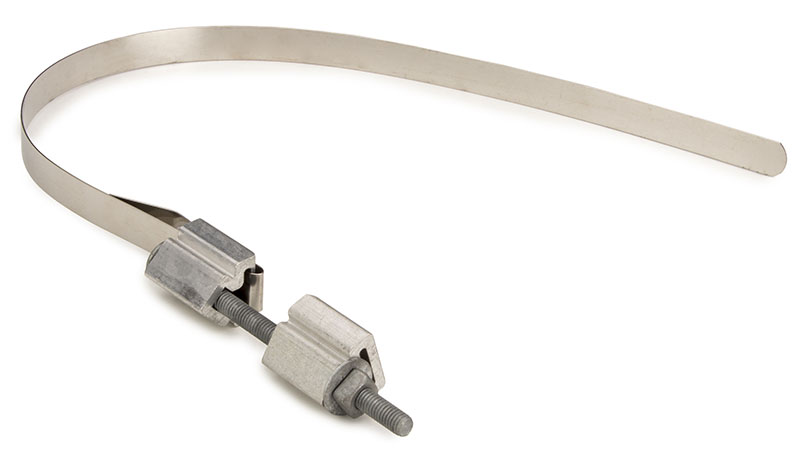

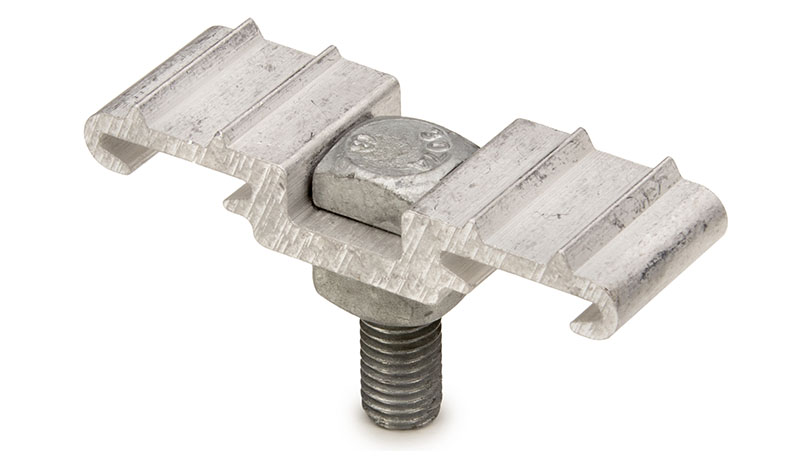

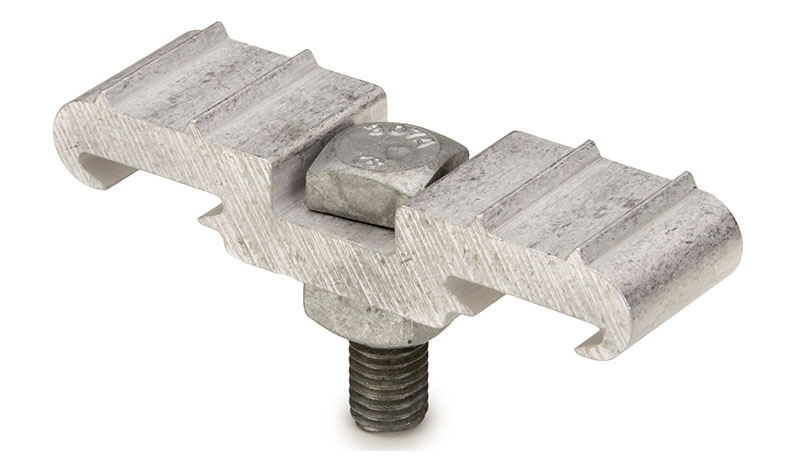

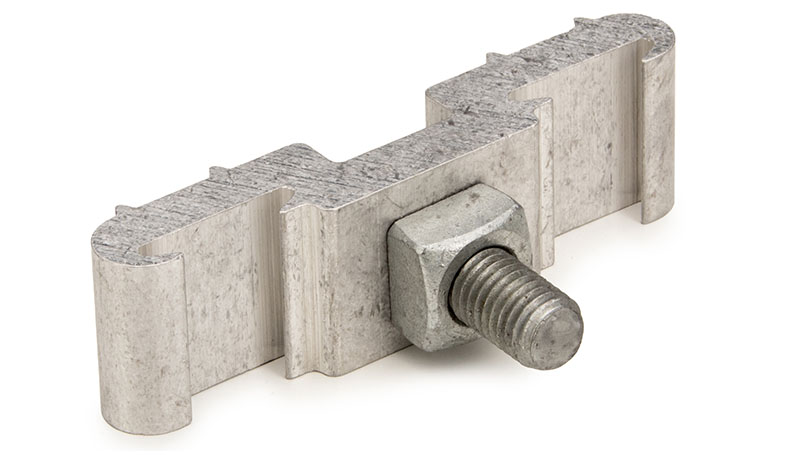

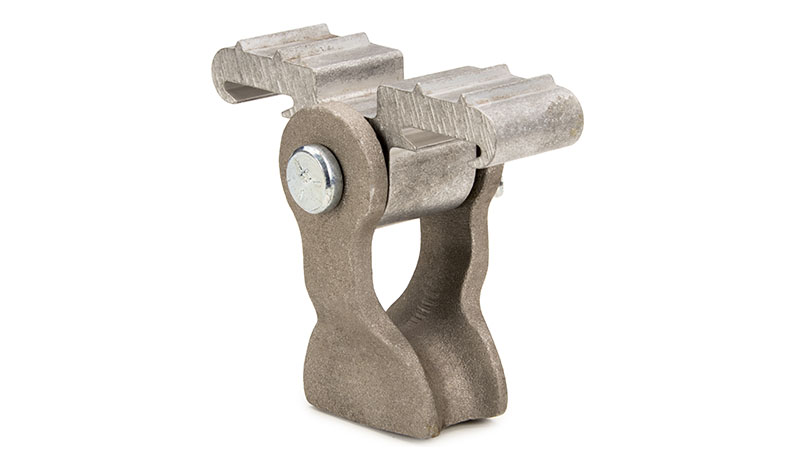

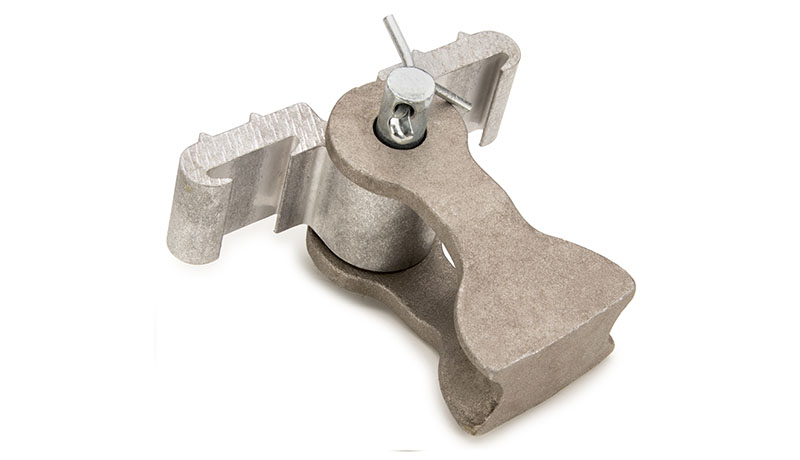

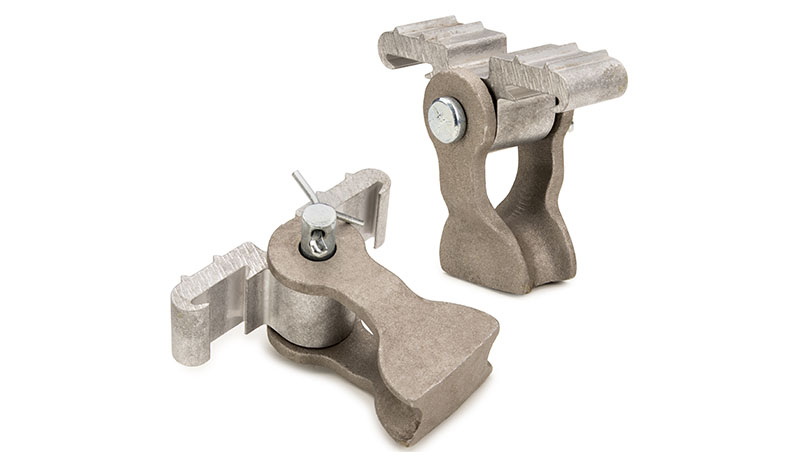

Mounting plates, dead-end guy assemblies, and pre-cut bolt/band assemblies make up the pole-mounting line. Bolt/band assemblies pair a mounting plate or bolt clamp with the correct length of band pre-cut to a specific pole diameter range, so the field crew isn't measuring and cutting on site.
| Catalog # | Product | Grade | Spec | Package | Weight | Copy |
|---|---|---|---|---|---|---|
| 812510 | Mounting Plate | Aluminum | — — | 1 each | — — | |
| 812512 | Heavy Duty Mounting Plate | Aluminum | — — | 1 each | — — | |
| 812514 | Dead End Guy | Aluminum | — — | 1 each | — — | |
| 812343 | Bolt/Band Assembly | Mixed | 8–10" pole dia 20–25 cm pole dia | 1 each | — — | |
| 812345 | Bolt/Band Assembly | Mixed | 10–13" pole dia 25–33 cm pole dia | 1 each | — — | |
| 812346 | Bolt/Band Assembly | Mixed | 13–17" pole dia 33–43 cm pole dia | 1 each | — — | |
| 812347 | Bolt/Band Assembly | Mixed | 17–21" pole dia 43–53 cm pole dia | 1 each | — — | |
| 812143 | Bolt/Band Assembly | Mixed | 8–10" pole dia 20–25 cm pole dia | 1 each | — — | |
| 812145 | Bolt/Band Assembly | Mixed | 10–13" pole dia 25–33 cm pole dia | 1 each | — — | |
| 812146 | Bolt/Band Assembly | Mixed | 13–17" pole dia 33–43 cm pole dia | 1 each | — — | |
| 812147 | Bolt/Band Assembly | Mixed | 17–21" pole dia 43–53 cm pole dia | 1 each | — — | |
| 812148 | Bolt/Band Assembly | Mixed | 21–24" pole dia 53–61 cm pole dia | 1 each | — — |
Material certification available on request. Contact your distributor rep for pricing and MOQ.

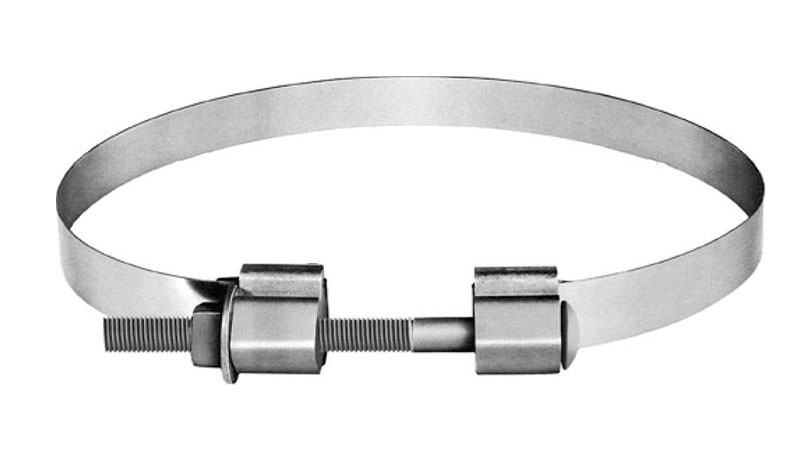

Each kit bundles a mounting plate with the matching pre-cut bolt/band assemblies for a specific pole diameter range, in both standard and heavy-duty configurations — one SKU at the counter instead of three components picked separately.
| Catalog # | Product | Grade | Spec | Package | Weight | Copy |
|---|---|---|---|---|---|---|
| 850343 | Pole Hardware Mounting Kit | Mixed | 8–10" pole dia 20–25 cm pole dia | 1 kit | — — | |
| 850345 | Pole Hardware Mounting Kit | Mixed | 10–13" pole dia 25–33 cm pole dia | 1 kit | — — | |
| 850346 | Pole Hardware Mounting Kit | Mixed | 13–17" pole dia 33–43 cm pole dia | 1 kit | — — | |
| 850347 | Pole Hardware Mounting Kit | Mixed | 17–21" pole dia 43–53 cm pole dia | 1 kit | — — | |
| 850348 | Pole Hardware Mounting Kit | Mixed | 21–24" pole dia 53–61 cm pole dia | 1 kit | — — | |
| 850143 | Pole Hardware Mounting Kit | Mixed | 8–10" pole dia 20–25 cm pole dia | 1 kit | — — | |
| 850145 | Pole Hardware Mounting Kit | Mixed | 10–13" pole dia 25–33 cm pole dia | 1 kit | — — | |
| 850146 | Pole Hardware Mounting Kit | Mixed | 13–17" pole dia 33–43 cm pole dia | 1 kit | — — | |
| 850147 | Pole Hardware Mounting Kit | Mixed | 17–21" pole dia 43–53 cm pole dia | 1 kit | — — | |
| 850148 | Pole Hardware Mounting Kit | Mixed | 21–24" pole dia 53–61 cm pole dia | 1 kit | — — |
Material certification available on request. Contact your distributor rep for pricing and MOQ.
Contact a USABAND rep to set up distributor pricing and MOQs across the complete product line. Or download the catalog first to confirm the SKUs you need.
USABAND is a product line of PT. All ordering and technical support is handled through the USABAND distributor network.
